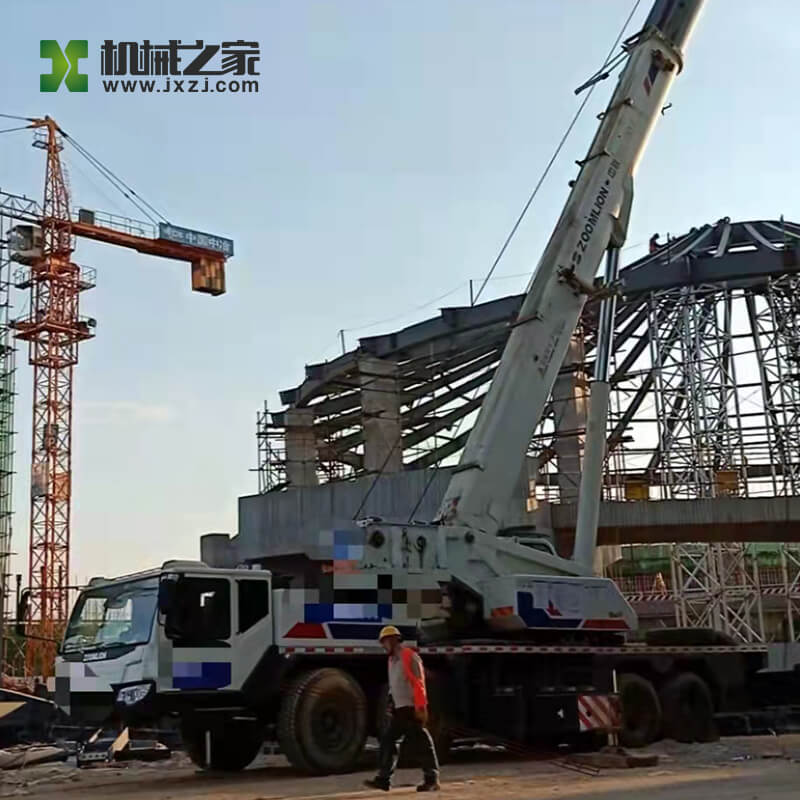

Used Zoomlion Truck Crane Zoomlion QY80V Second Hand Truck Mobile Crane

Production Details:

• This product is a full-slewing, telescopic boom type, hydraulic proportional control truck crane. It adopts the company's self-made full-drive four-axle special chassis, with wide field of vision, luxurious and comfortable decoration, 8×4 drive, hydraulic power steering, light weight flexible.

Product Parameters:

Item		QY80V
Working performance	Max. rated lifting capacity (kg)	80000
	Max. load moment of basic boom (kN.m)	3116
	Max. load moment of Max. length boom (kN.m)	1646
	Max. lifting height of basic boom (m)	13.7
	Max. lifting height of main boom (m)	48.8
	Max. lifting height of jib (m)	66.0
	Max. lifting height of jib (m)	75.0
Working speeds	Max. hoist rope speed (main winch) (m/min)	130
	Max. hoist ropes peed (auxiliary winch) (m/min)	110
	Boom derricking up time (min)	62
	Boom telescoping out time (s)	145
	Max. slewing speed (r/min)	0-1.6
Traveling parameters	Max. traveling speed (km/h)	75
	Max. gradeability (%)	40
	Min. turning diameter (m)	≤24
	Min. ground clearance (mm)	280
	Oil consumption per 100 km (L)	46
Weights	Deadweight in traveling condition(kg)	50000
	Complete vehicle kerb mass(kg)	49870
	Front axle load (kg)	24000
	Rear axle load (kg)	26000
Dimensions	Dimensions (L×W×H) (mm)	15000×2850×3850
	Longitudinal distance between outriggers (m)	6.38
	Transversal distance between outriggers (m)	Full extension 8.0, Half extension 5.28
	Tail turning radius (mm)	4390
	Main boom length (m)	12.5—48.0
	Main boom elevation angle (°)	-2- 80
	Extended arm length (optional) (m)	9.0
	Extension arm mounting angle (°)	0
	Jib length (m)	10.3,17.5
	Offset (°)	0,15,30
