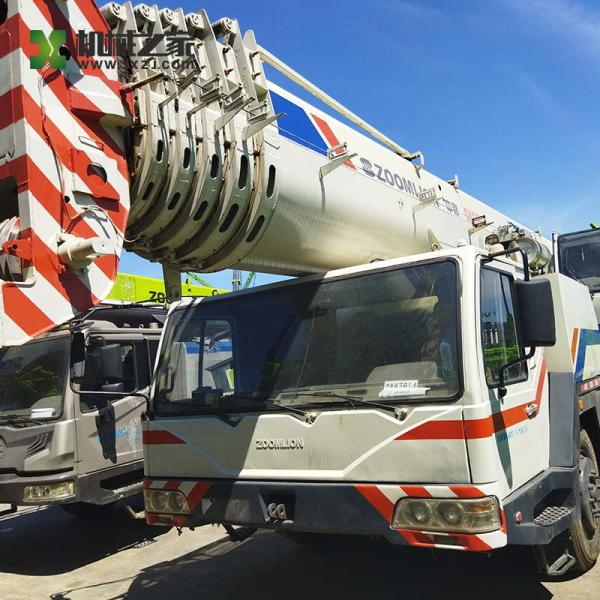

Used Zoomlion Truck Crane Zoomlion QY130 Second Hand Truck Mobile Crane

Production Details:

• QY130V633 truck crane is a high-performance and high-reliability crane designed and developed by our company in order to meet the market demand, using many years of experience in designing and manufacturing mobile cranes and combining with international advanced technology.
• This product is a high-tech product with a high concentration of electromechanical-hydraulic systems, and incorporates part of the all-terrain crane technology. It will be active in various fields of my country's economic construction with its excellent handling performance, excellent fretting performance, huge lifting capacity and extraordinary lifting height.
• This product is suitable for lifting operations and installation projects in chemical, mining, oil fields, ports, construction sites and other places. This product is not suitable for areas with strong electromagnetic waves.
• This product is a full swing, telescopic boom type, electro-hydraulic proportional control truck crane. It adopts the company's self-made full-drive five-axle special vehicle chassis, with wide field of vision, luxurious and comfortable decoration, three-axle drive and three-axle steering.

This machine was manufactured in September 2011, has traveled 10,000 kms. It is standard, with 20T and 90T hooks missing. The first standard section and auxiliary hoist assembly are added. It is maintained on schedule and has excellent performance at present.

Product Parameters:

Item			Value	Remarks
Working performance	Max. rated gross lifting weight (kg)		130000
	max. load moment of the basic boom (kN.m)		4860	6m range
	Max. load moment of the longest main boom (kN.m)		2080
	Main boom max. lifting height (m)		58.5	The deformation of the boom is not considered, and the value in brackets is the value of the extension boom
	Max. lifting height of jib in (m)		77/(85)
Working speeds	Main hoist single rope max. speed (m/min)		110	At fourth floor
	Auxiliary winch single rope max. speed (m/min)		70	At third floor
	Boom telescoping out time (s)		≥550
	Boom derricking up time (s)		≥70
	Rotation speed (r/min)		≤1.5
Traveling parameters	Max. traveling speed (km/h)		72
	Max. gradeability (%)		40
	Min. turning diameter (m)		23
	Min. ground clearance (mm)		320
	Limits for exhaust pollutants and smoke		Conform to related standards	GB3847-2005 GB17691-2005Euro Ⅲ
	Oil consumption per 100 km (L)		70
Weight parameters	Deadweight in traveling condition (kg)		54900
	Complete vehicle kerb mass (kg)		54705
	Front axle axle load (kg)		19900
	Rear axle axle load (kg)		35000
Dimensions	Dimensions (L×W×H) (mm)		14690×3000×3940
	Longitudinal distance of outriggers (m)		7.67
	Outrigger lateral distance (m)		7.8(Full extension), 5.3(Half extension)
	Main boom length (m)		12.8～57.5
	Main boom elevation angle (°)		-1.5～82
	Jib length (m)		11,18.6
	Jib + extension boom (m)		26.6
	Offset (°)		0,30
Chassis	Model		ZLJ5551	Feature number: ZLJ5551V3.3
	Type		Class II
	Engine	Model	OM501LA.Ⅲ/18
		Rated power (kW/r/min)	320	1800r/min
		Max. output torque (N.m/r/min)	2100	1080r/min
