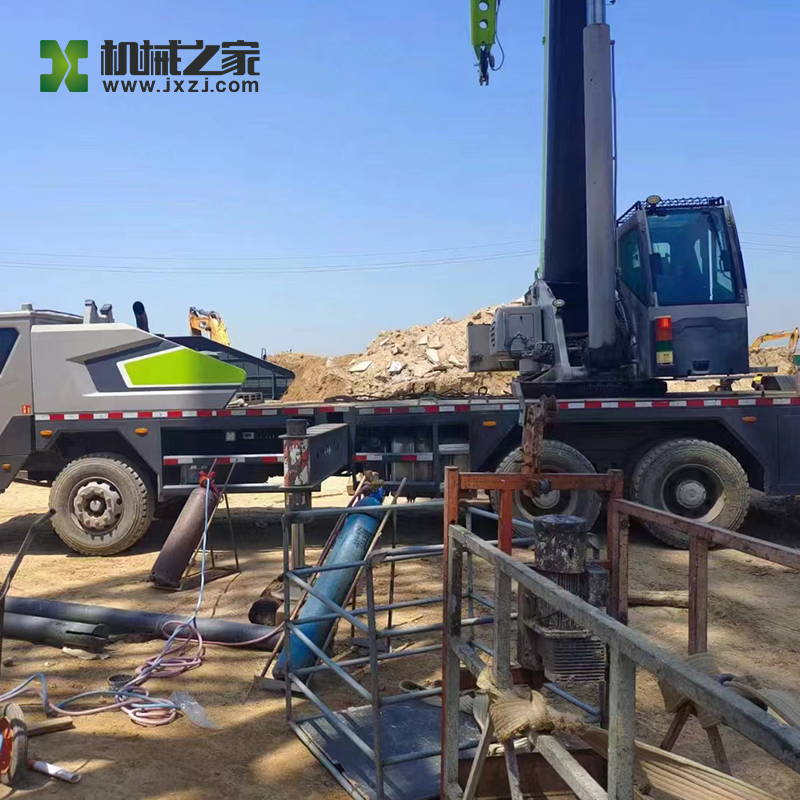

Used Zoomlion Truck Crane Zoomlion ZLJ5333JQZ25V Second Hand Truck Mobile Crane
Production Details:
Model NO.
| ZLJ5333JQZ25V | Boom Type | Telescopic |
Max. Rated Lifting Capacity
| 25000 kg | Max. Lifting Height of Jib | 50m |
Max Gradeability
| 45% | Working Diameter | 21m |
Transport Package
| Complies with Min export packaging requirements | 规格 Specification | 12870×2550×3520mm |
Driving mileage
| 6720km | Working hours | 6213.6h |
Trademark
| Zoomlion | Place of Origin | China |
HS Code
| | Supply Capacity | 10 Units Per Month |
ZLJ5333JQZ25V truck crane is a new generation of high-performance
product independently developed by our company to meet market
demand and integrate many years of experience and advanced
technology. The performance parameters such as lifting height, main
boom length, working speed and lifting capacity of this crane are
all at the advanced level at home and abroad.
This product is a full-slewing, telescopic boom type, hydraulic
proportional control five-section boom truck crane. The chassis
adopts the company's self-made full-drive three-axle special
chassis, with national V emission, wide field of vision, simple and
elegant decoration, and 6×4 drive.
The product adopts the latest reversing valve and variable pump
system, and is equipped with safety devices such as relief valve,
balance valve, hydraulic lock, brake valve, etc., to prevent oil
circuit overload and avoid accidents caused by oil pipe rupture. To
ensure that the working capacity of each executive agency is fully
utilized, the reliability and safety of the system are improved.
The product is equipped with a variety of safety devices such as
torque limiters and a complete lighting system, which can ensure
safe and reliable operation and facilitate night operations.
The product is novel in shape, and integrates beauty in shape,
shape and color.
Product Parameters:
| Item | Value | Remarks |
| Working performance | Max. Rated Gross Lifting Weight | kg | 25000 | |
| The max. lifting moment of the basic arm | kN.m | 1142 | |
| Max. lifting moment of the longest main boom | kN.m | 768 | |
| Basic boom max. lift height | m | 11.3 | |
| Main boom max. lift height | m | 42.1 | Boom deformation is not considered |
| Max. lifting height of jib | m | 50 |
| Working speeds | Max. hoist ropes peed (main winch) | m/min | 135 | fourth floor |
| Max. hoist ropes peed (auxiliary winch) | m/min | 120 | Second floor |
| Boom derricking up time | s | 35 | |
| Boom telescoping out time | s | 80 | |
| Swing speed | r/min | 0～2.7 | |
| Traving parameters | Max. use altitude | m | 2000 | |
| Top speed | km/h | 90 | |
| Max. gradeability | % | 45 | |
| Min. turning diameter | m | ≤21 | |
| Min. ground clearance | mm | 260 | |
| Oil consumption per 100 km | L | 29 | |
| Weight parameters | Deadweight in traveling condition | kg | 33240 | |
| Complete vehicle kerb mass | kg | 33045 | |
| Front axle load | kg | 7240 | |
| Rear axle load | kg | 26000 | |
| Dimensions | Dimensions (L×W×H) | mm | 12870×2550×3520 | |
| Longitudinal distance of outriggers | m | 5.39 | |
| Outrigger lateral distance | m | Full extension 6.3, half extension 4.3 | |
| Tail turning radius | mm | 3260 | |
| Main boom length | m | 10.7～42.0 | |
| Main boom elevation | ° | -2～80 | |
| Jib length | m | 8 | |
| Offset | ° | 0,15,30 | |
