Used Zoomlion Truck Crane Zoomlion ZLJ5322JQZ25V Second Hand Truck Mobile Crane
Production Details:
Model No.
| ZLJ5322JQZ25V | Boom Type | Telescopic |
Max. Rated Lifting Capacity
| 25000 kg | Max. Lifting Height of Jib | 39m |
Max Gradeability
| 35% | Working Diameter | 23m |
Transport Package
| Complies with Min. export packaging requirements | Specification | 12700×2500×3450mm 0 × 3520MM |
Driving Mileage
| 20000M | Working hours | 7000h |
Trademark
| Zoomlion | Place of Origin | China |
HS Code
| | Supply Capacity | 10 Units/ Month |
This product is a full-slewing, telescopic boom type, hydraulic
proportional control five-section boom truck crane. The chassis
adopts the company's self-made full-drive three-axle special
chassis, which is discharged from Guochuan and has a wide field of
vision. Simple and elegant decoration, 6x4 drive.
This product adopts the latest hydraulic proportional reversing
valve with load feedback and quadruple gear pump system. Equipped
with relief valve, balance valve, hydraulic lock, brake valve and
other safety devices. In order to prevent the overload of the oil
circuit and avoid accidents caused by the rupture of the oil pipe,
ensure that the working ability of each actuator can be fully
utilized. Improve the reliability and security of the system.
The product is equipped with a variety of safety devices such as
torque limiters and a complete lighting system, which can ensure
the safety and reliability of the work and facilitate night work.
The vehicle's exhaust emissions comply with the European Stage 3
emission standards (Euro III), and its safety devices meet the
requirements of CCC certification.

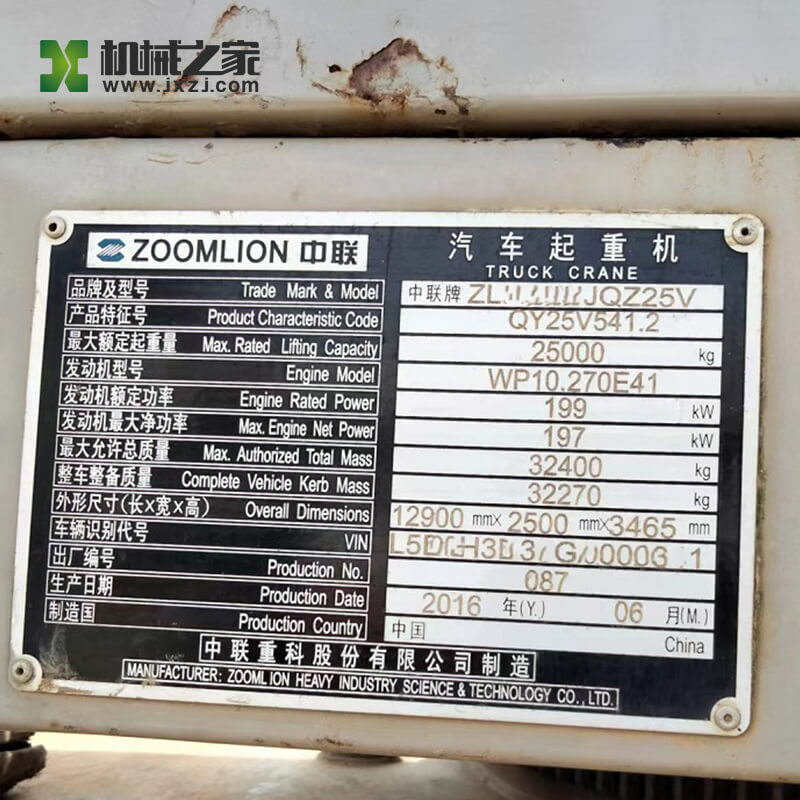

This product was manufactured in June 2016, with five-section boom,
jib, two hooks, excellent performance, is a very widely used model.
Product Parameters:
| Item | Value | Remarks |
| Working performance | Max. rated lifting capacity (kg) | 25000 | |
| Max. load moment of the basic boom (kN.m) | 980 | |
| Max. load moment of the longest main boom (kN.m) | 494 | |
| Max. lifting height of the basic boom (m) | 11.0 | |
| Max. lifting height of main boom (m) | 39 | Boom deformation is not considered |
| Max. lifting height of jib (m) | 47.0 |
| Working Speeds | Max. speed of single rope (main winch) (m/min) | 120 | reel fourth layer |
| Max. speed of single rope (auxiliary winch) (m/min) | 170 | reel second layer |
| Boom derricking up time (s) | 40 | |
| Boom telescoping out time (s) | 80 | |
| Max. slewing speed (r/min) | 0～2.2 | |
| Traveling parameters | Max. travel speed (km/h) | 78 | |
| Max. grade (%) | 37 | |
| Min. turning diameter (m) | 22 | |
| Min. ground clearance (mm) | 220 | |
| Limits for exhaust pollutants and smoke | Conform to related standards | GB3847-2005 GB17691-2005 Phase III |
| Oill consumption per 100 km (L) | 45 | |
| Weights | Deadweight in traveling condition (kg) | 31700 | |
| Complete vehicle kerb mass (kg) | 31570 | |
| Front axle load (kg) | 6900 | |
| Rear axle axle load (kg) | 24800 | |
| Dimensions | Dimensions (L×W×H) (mm) | 12700x2500x3450 | |
| Longitudinal distance of outriggers (m) | 5.36 | |
| Outrigger lateral distance (m) | 6.1 | |
| Main boom length (m) | 10.4~39.2 | |
| Main boom elevation angle (°) | -2～80 | |
| Jib length (m) | 8 | |
| Offset (°) | 0 , 30 | |
| Chassis | Model | zlj5325 |
| Type | Class II |
| Engine | Model | WP10.375N |
| Rated power (kW/r/min) | 199/2200 |
| Max. output torque (N.m/r/min) | 1100/1300~1600 |
