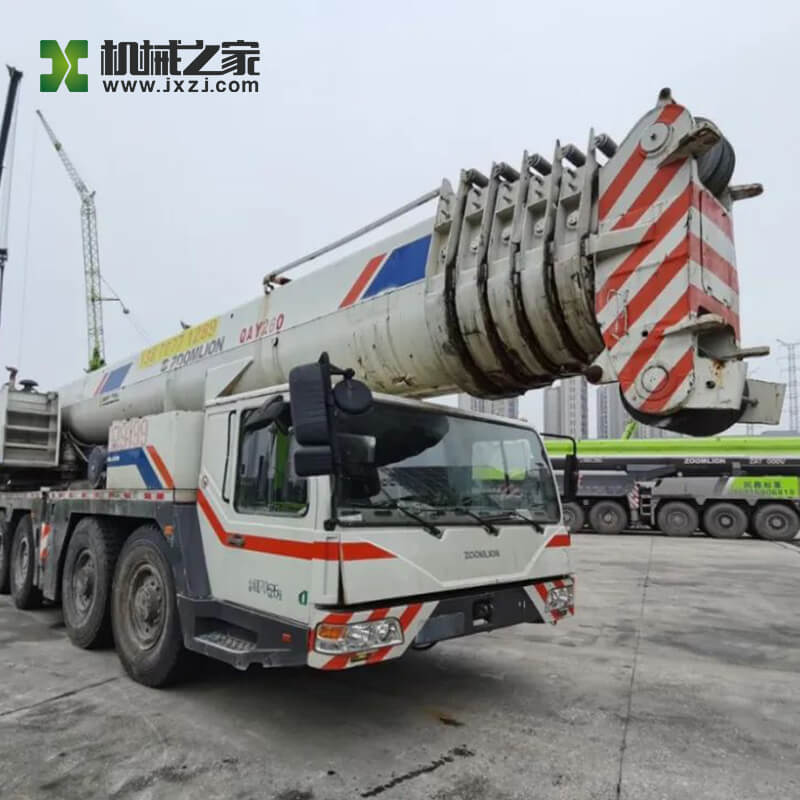

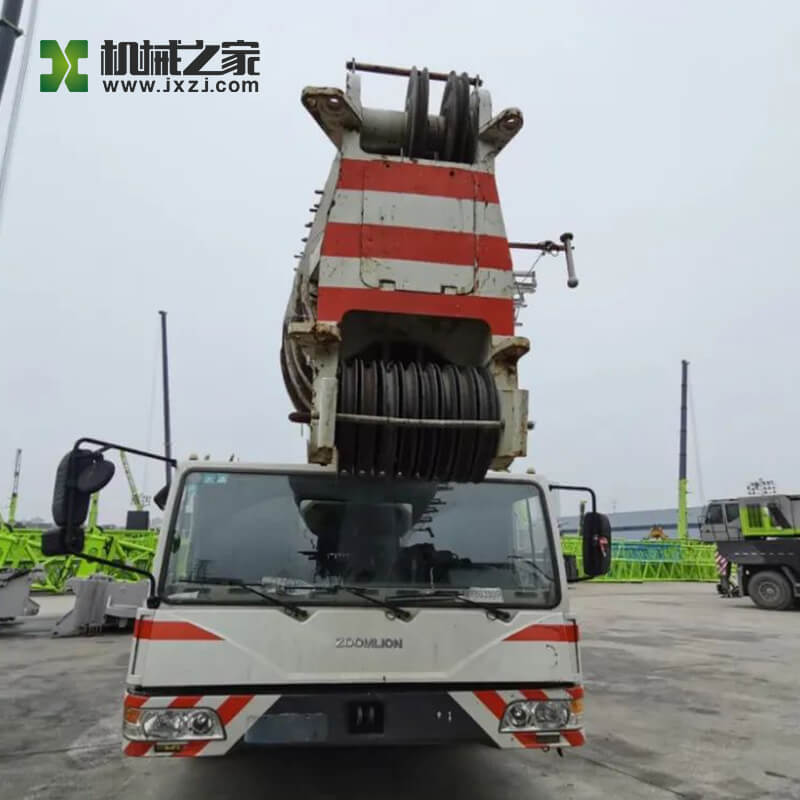

Used Zoomlion Truck Crane Zoomlion QAY180 Second Hand Truck Mobile Crane

Production Details:

• QAY180 all-terrain crane is a high-performance and high-reliability crane, using the technical crystallization of designing and manufacturing mobile cranes for many years and combining with international advanced technology.
• It is a high-tech product with a high concentration of electromechanical hydraulic systems. Excellent fretting performance, huge lifting capacity and extraordinary lifting height.
• Suitable for lifting operations and installation projects in chemical, mining, oil fields, ports, construction sites and other places. But not suitable for areas with strong electromagnetic waves.
• This equipment is an all-terrain crane with full swing, telescopic boom type, electro-hydraulic proportional control. It adopts the Zoomlion's own six-axle dedicated all-ground chassis, with wide field of vision, four-axle drive and five-axle steering, luxurious and comfortable decoration.
• The newest electro-hydraulic proportional reversing valve with load feedback and multi-piston variable pump is picked, and the variable system combined with open type and closed type is adopted, makes that the working ability of each actuator can be fully exerted.
• The combined action of lifting, luffing, slewing, and telescopic mechanisms greatly improves the working efficiency of the crane. It has the characteristics of light and flexible operation, stable and reliable work, stepless speed regulation and so on.
• The hydraulic system has safety devices such as relief valve, balance valve, hydraulic lock, brake valve, etc., to prevent the overload of the oil circuit and avoid accidents caused by the rupture of the oil pipe.
• Equipped with a variety of safety devices, like torque limiters and a complete lighting system, it can ensure safe and reliable operation and facilitate night work.

This equipment was manufactured in 2011, with a set of 55 tons of counterweight, two hooks of 50T and 9T, and an old box-type jib. The total driving time is 1641 hours. It is sluggish in the factory.

Product Parameters:

Item			Value		Remarks
Working performance	Max. rated lifting capacity (kg)		180000
	Max. load moment of the basic boom (kN.m)		6480		9m range
	Max. load height of the main boom (m)		62.6		The deformation of the boom is not considered, and the value in brackets is the value of the extension boom
	Max. lifting height of jib (m)		88.5
Working parameters	Main winch Max. hoist rope speed (m/min)		128		Fourth floor
	Auxiliary winch Max. hoist rope speed (m/min)		70		Fourth floor
	Boom telescoping out time (min)		10		Depends on temperature and engine speed
	Boom derricking up time (s)		≥80
	Rotation speed (r/min)		≤1.5
Traveling parameters	Max. traveling speed (km/h)		72
	Max. gradeability (%)		50
	Min. turning diameter (m)		24
	Min. ground clearance (mm)		305
	Limits for exhaust pollutants and smoke		Conform to related standards		GB3847-2005 GB17691-2005 Euro III
	Oil consumption per 100 Km (L)		85
Weights	Deadweight in traveling condition (kg)		70585
	Complete vehicle kerb mass (kg)		70390
	Axle load per bridge (kg)		11764
Dimensions	Dimensions (L×W×H) (mm)		16560×3000×3950
	Longitudinal distance of outriggers (m)		8.8
	Outrigger lateral distance (m)		8.8
	Main boom length (m)		13.8 ～61
	Main boom elevation angle (°)		-0.5 ～83
	Jib length (m)		10.7,18
	Jib + extension boom (m)		18.7,26
	Offset (°)		0,15,30
Chassis	Model		ZLJ5720QA		Feature number: ZLJ5720QAV3
	Type		Class II
	Engine	Model		OM502LA
		Rated power (kW/r/min)		420		1800r/min
		Max. output torque (N.m/r/min)		2700		1080r/min
