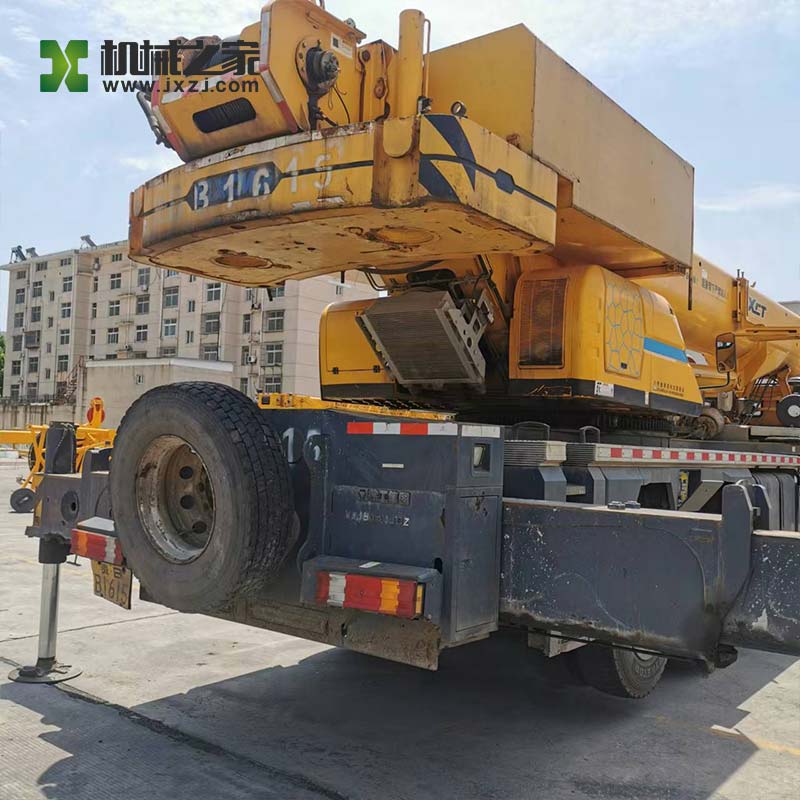

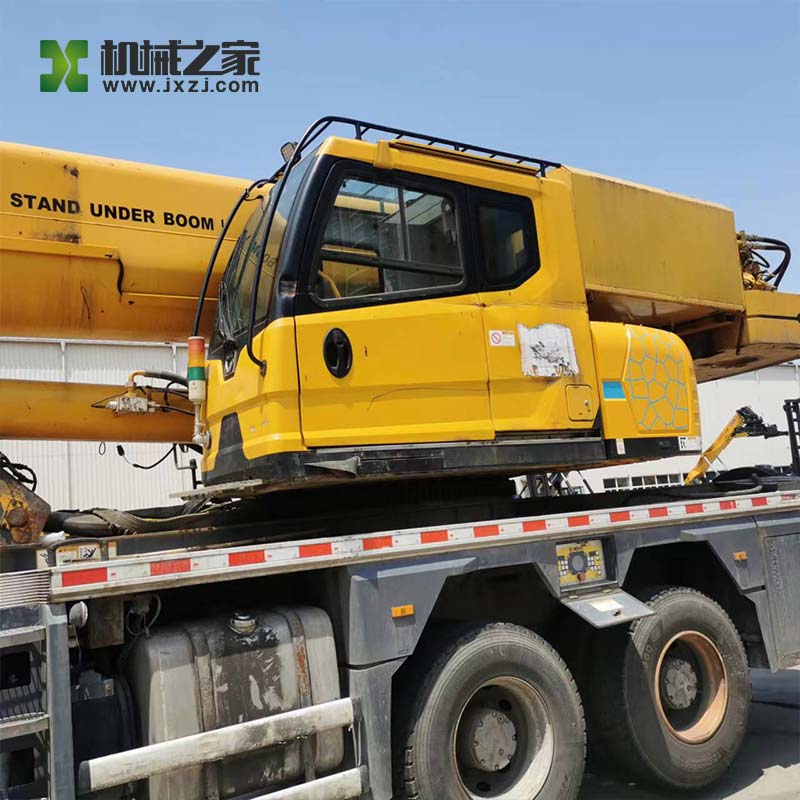

Used Truck Crane XCMG XCT55L6 Second Hand Truck Mobile Crane

Production Details:

• Standard reshaping, all-round leadership, the industry's first product with a 6-section boom and a 50-meter boom has established a new height in the industry.
• The original new single-cylinder latch system realizes six booms, the boom length reaches 50m, and the lifting performance leads the industry by more than 20%.
• Low-speed high-torque power system to achieve the perfect combination of optimal power and optimal economy. The Max. climbing ability is 45%, the Max. driving speed is 90km/h, the highest in the industry, and the fuel consumption per 100 kilometers is 35L.
• The new electric proportional pump-controlled energy-saving hydraulic system has lower operating fuel consumption and better fretting performance. The average fuel consumption under comprehensive operating conditions is 15% lower than that of peers, and the fretting and smoothness are improved by 20%, enabling precise hoisting.
• The intelligent boom technology realizes automatic planning of working conditions, hoist follow-up, and amplitude compensation, and the level of intelligence is leading in the world.
• The XCMG-machine interaction system reaches the car-level level, providing a comfortable and intelligent operating experience. XCMG G generation has a new appearance and humanized design, making the operation more comfortable and convenient.

Product Parameters:

parameter item	XCT55L6
Dimensions	*
Overall length of the whole machine (mm)	13650
Overall width of the whole machine (mm)	2540
Overall height of the whole machine (mm)	3770
Wheelbase(mm)	1470+3700+1350
Tire distance(mm)	2124/2124/1834/1834
Weight parameter	*
Deadweight in traveling condition (kg)	44000
Axle load(kg)	9000+9000+13000×2
Dynamic parameters	*
Engine model	MC11.36-40,SC10E340Q4
Engine rated power (kw/(r/min))	268/1900,251/1900
Engine rated torque (N.m/(r/min))	1800/1000-1400,1550/1300
Traveling parameters	*
Traveling	*
Max. travel speed (km/h)	90
Min. stable driving speed (km/h)	2.5～3
Turning	*
Min. turning diameter (m)	24
Boom head Min. turning diameter (m)	26.2
Max. gradeability(%)	45
Min. ground clearance (mm)	303.5
Approach angle (°)	16 (including front protection 10°)
Departure angle (°)	13
Braking distance (m)	≤10
Fuel consumption per 100 kilometers (L)	35
Main performance parameters	*
Max. rated lifting capacity (t)	55
Min. rated amplitude (m)	3
Max. load moment of the basic boom (kN m)	2058
Turntable tail turning radius (mm)	3830
Outrigger	*
Longitudinal (m)	8.035
Horizontal (m)	7.3
Max. lift height	*
Basic boom (m)	10.7
The longest main boom (m)	49.1
The longest main boom + jib (m)	63.8
The longest main boom + jib + extension	-
Boom length	*
Basic boom (m)	11.2
Longest main boom (m)	50
Longest main boom + jib	66
The longest main boom + jib + extension section (m)	-
Working speed	*
Max. slewing speed (r/min)	2
Lifting speed	*
Main hoisting mechanism	130
Auxiliary lifting mechanism	130
Boom extension time	*
Full extension(s)	350
Full shrink	-
Amplitude time	*
Full lift (s)	50
Full boom drop(s)	-
Outrigger retraction--horizontal	*
Simultaneously put -- horizontal(s)	30
At the same time closing -- horizontal (s)	20
Outrigger retraction-vertical	*
Simultaneously put(s)	30
Simultaneous receipt (s)	20
