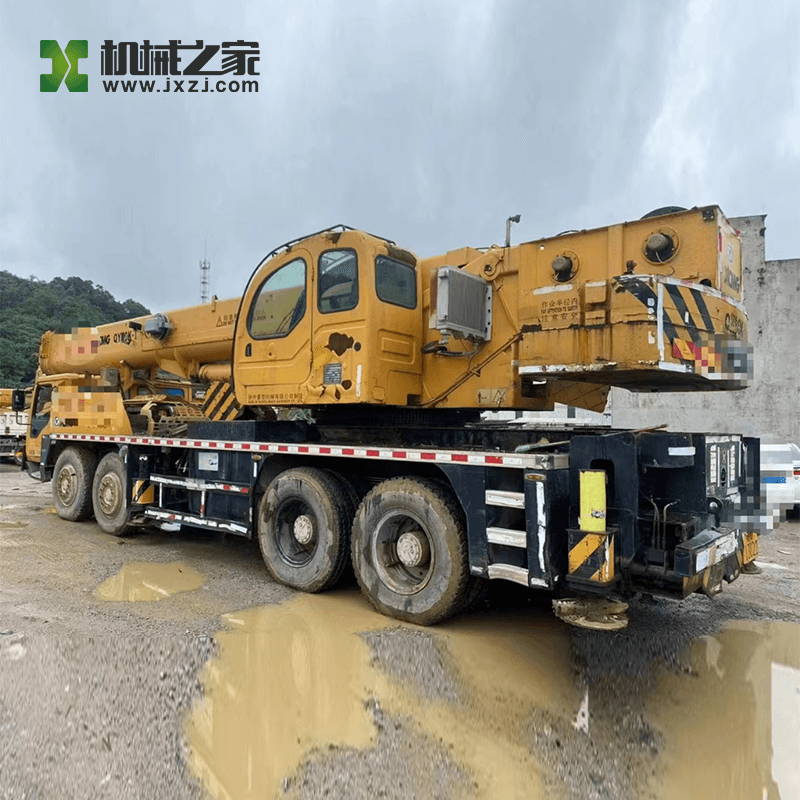

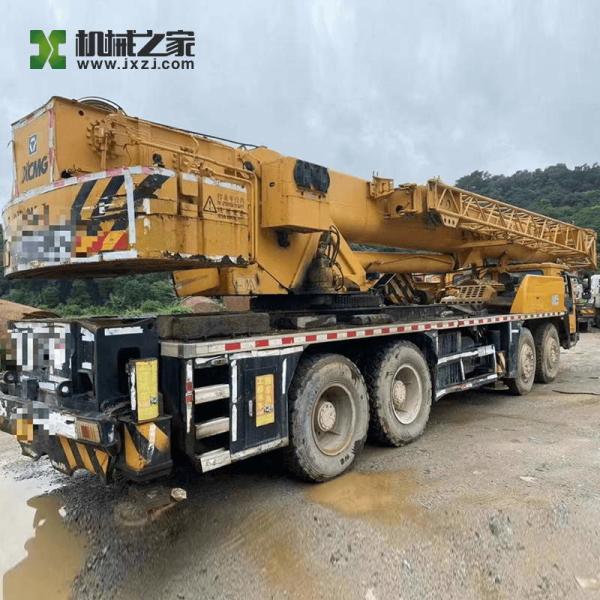

    Used Truck Crane XCMG JQZ70V Second Hand Truck Mobile Crane

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : JQZ70V
    Certification : CE, ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10PCS/M
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

    Used Truck Crane XCMG JQZ70V Second Hand Truck Mobile Crane

    Used Truck Crane XCMG JQZ70V Second Hand Truck Mobile Crane


    Production Details:


    Model No.


    QY70VBoom TypeTelescopic

    Max. Rated Lifting Capacity


    70000 kgMax. Lifting Height of Jib42m

    Max Gradeability


    40%Working Diameter24m

    Transport Package


    Complies with Min. export packaging requirementsSpecification13500×2800×3540M

    Driving Mileage


    14000KMWorking hours12000h

    Trademark


    XCMGPlace of OriginChina

    HS Code


    Supply Capacity10 Units/ Month

    XCMG JQZ70V crane is the third generation series product of XCMG. The main key power components, transmission parts, hydraulic components and structural materials are equipped with international first-class configuration to ensure the high performance and reliability of the product. The boom adopts an elliptical section, with strong torsion resistance and reasonable force transmission; due to the widespread use of WELDOX960 New materials such as ultra-high-strength steel, glass fiber reinforced plastic, and aluminum alloy can not only meet high performance, but also effectively reduce the weight of the whole machine. High working efficiency: The main hoist adopts a dual-variable system, which can realize low speed for heavy load and high speed for light load, energy saving and high efficiency, fast amplitude variation and telescopic speed, which improves the working efficiency. The decoration of the two rooms is generous and beautiful, and there are heating and cooling air conditioners for getting on and off the bus, which is easy and comfortable to operate. The chassis has sufficient power, and a high-power environmentally friendly engine is selected, and the driving performance is excellent.


    Product Parameters:


    Dimensions


    UnitQY70K
    Overall full lengthmm13500
    Overall full widthmm2800
    Overall heightmm3540

    Weights


    Deadweight in traveling conditionkg43000
    front axle loadkg17000
    rear axle loadkg26000

    Dynamic parameters


    Engine model WD615.338(Euro III)
    Engine rated powerkW/(r/min)276/2200
    Engine rated torqueN.m/(r/min)1500/1400

    Traveling parameters


    Top speedkm/h75
    Min. turning diameterm24
    Min. ground clearancemm270
    Approach angle°19
    Departure angle°13
    Max. gradeability%40
    Oil consumption per 100 kmL42

    Main performance parameters


    Max. rated gross lifting capacityt70
    Min. rated amplitudemm3000
    Turntable tail turning radiusm3.55
    Max. load momentkN.m2303
    Basic boomm11.2
    Longest main boomm42
    Longest main boom + jibm58
    Longitudinal distance of outriggersm5.75
    Outrigger lateral distancem6.9

    Working speeds


    Boom luffing times60
    Boom full extension and full retraction times≤150
    Max. rotation speedr/min≥2.0
    Max. speed of main hoisting mechanism (single rope)m/min≥130
    Max. speed of auxiliary hoisting mechanism (single rope)m/min≥108
