    Used Zoomlion Mobile Crane 25 Ton Zoomlion ZLJ5302JQZ25V

    Ask Lasest Price
    Brand Name : Zoomlion
    Model Number : ZLJ5302JQZ25V
    Certification : CE, ISO7501
    Price : Negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

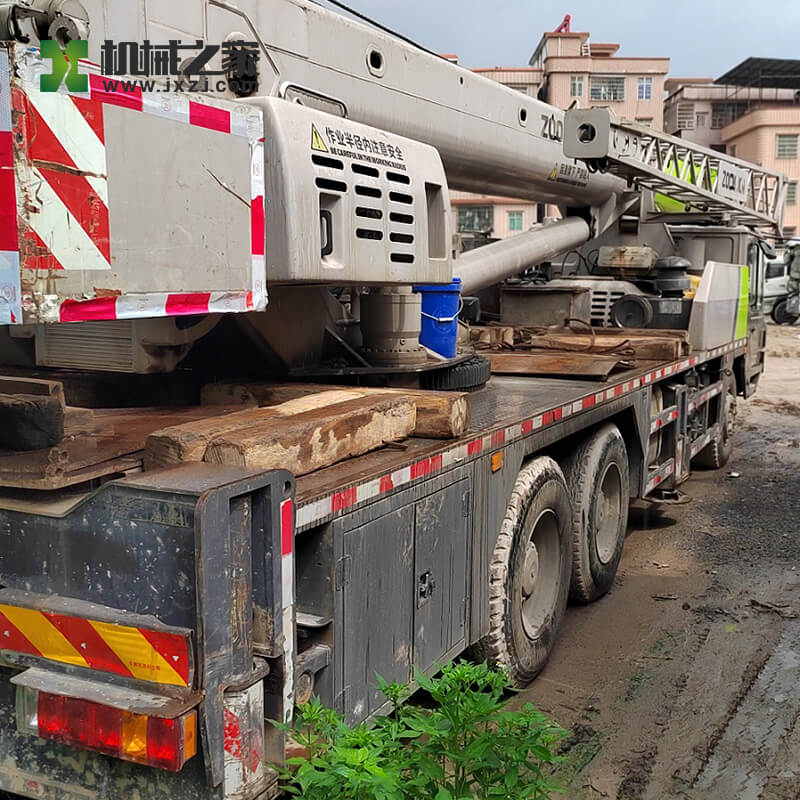

    Used Zoomlion Mobile Crane 25 Ton Zoomlion ZLJ5302JQZ25V

    Used Zoomlion Truck Crane Zoomlion ZLJ5302JQZ25V Second Hand Truck Mobile Crane


    Production Details:


    Model NO.


    ZLJ5302JQZ25VBoom TypeTelescopic

    Max. Rated Lifting Capacity


    25000 kgMax. Lifting Height of Jib39m

    Max Gradeability


    37%Working Diameter23m

    Transport Package


    Complies with Min. export packaging requirementsSpecification12700×2500×3450mm

    Driving mileage


    38381.4KmWorking hours12088.5h

    Trademark


    ZoomlionPlace of OriginChina

    HS Code


    Supply Capacity10 Units Per Month

    • Full-slewing, telescopic boom type, hydraulic proportional control five-section boom truck crane.
    • Its chassis adopts the company's own full drive three axles special chassis, discharged from Guochuan, also has a wide field of vision.
    • Ensure that the working ability of each actuator can be fully utilized, to preventing the overload of the oil circuit and avoid accidents caused by the rupture of the oil pipe,
    • Uses the newest hydraulic proportional reversing valve with load feedback and quadruple gear pump system. Equipped with relief valve, balance valve, hydraulic lock, brake valve and other safety devices.
    • Equipped with a variety of safety devices, including torque limiters and a complete lighting system, that can ensure the safety and reliability of the work, also facilitate night work.
    • Exhaust emissions comply with Euro III, its safety devices meet the requirements of CCC certification.

    Product Parameters:

    Item


    Value


    Remark


    Working performanceMax. rated gross lifting capacity (kg)25000
    Max. load moment of the basic boom (kN.m)980
    Max. load moment of the longest main boom (kN.m)494
    Max. lifting height of the basic boom (m)11.0
    Max. lifting height of main boom (m)39

    Boom deformation is not considered

    Max. lifting height of jib (m)47.0
    Working SpeedsMax. speed of single rope (main winch) (m/min)120At fourth layer
    Max. speed of single rope (auxiliary winch) (m/min)170At second layer
    Boom derricking up time (s)40
    Boom telescoping out time (s)80
    Max. slewing speed (r/min)0~2.2
    Traveling parametersMax. travel speed (km/h)78
    Max. gradeability (%)37
    Min. turning diameter (m)22
    Min. ground clearance (mm)220
    Limits for exhaust pollutants and smokeConform to related standardsGB3847-2005 GB17691-2005 Phase III
    Oil consumption per 100 km (L)45
    WeightsDeadweight in traveling condition (kg)31700
    Complete vehicle kerb mass (kg)31570
    Front axle load (kg)6900
    Rear axle axle load (kg)24800
    DimensionsDimensions (L×W×H) (mm)12700x2500x3450
    Longitudinal distance of outriggers (m)5.36
    Outrigger lateral distance (m)6.1
    Main arm length (m)10.4~39.2
    Main boom elevation angle (°)-2~80
    Jib length (m)8
    Jib Mounting Angle (°)0 , 30
    Chassismodelzlj5325
    TypeClass II
    EngineModelWP10.375N
    Rated power (kW/r/min)199/2200
    Max. output torque (N.m/r/min)1100/1300~1600
