Used Zoomlion Crawler Crane Zoomlion QUY130 Second Hand Crawler
Crane
Production Details:
Model NO.
| QUY130 | Boom Type | Tower boom |
Max. Rated Lifting Capacity
| 130000 kg | Max. Lifting Height of Jib | 46.58m |
Max. Gradeability
| 30% | Working hours | 13500h |
Transport Package
| Compliant with export packaging requirements | Specification | 9.55×6.5×3.2m |
Trademark
| Zoomlion | Origin | China |

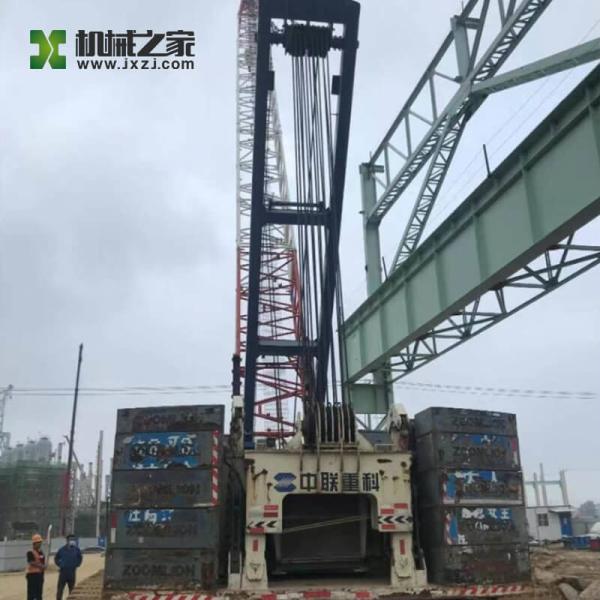

Zoomlion QUY130 crawler crane, safe control system: two operation
modes of work and installation are convenient and reliable;
equipped with real-time display of levelness, off-machine stop
action, emergency electrical control, lightning protection,
automatic direction adjustment for driving, closed circuit
Monitoring and other functions, complete security and monitoring
systems.
Excellent operating performance: load sensing, limit load
adjustment and electro-hydraulic proportional micro-speed control
make each movement excellent in micro-movement and operate more
smoothly;
In addition, the equipment has been in operation for 9 years, no
big repair records, and the equipment is properly maintained. The
main boom length is 64m, the Jib length is 19m, two hooks, 100 tons
and 12 tons, no quick release, no overfitting, and the current
performance is still very good, your professional choice.
Product Parameters:
| Project | Value | Remarks |
| Max. lifting weight ×Width (t×m) | 130×4.5 | |
| Max. Lifting Moment (t.m) | 661.5 | 94.5(lifting weight)×7(width) |
| Self-weight when basic arm (t) | 113.8 | |
| Boom length (m) | 19～73 | |
| Fixed jib length (m) | 13～31 | |
| Max. lifting capacity of fixed jib (t) | 13 | |
| Fixed jib mounting angle ° | 10,30 | |
| Main arm + fixed jib max. length (m) | 55+31,58+25,61+19 | |
| Max. speed of single rope of reel | Main winch (m/min) | 105 | The outermost layer of the roll |
|
| Vice winch (m/min) | 93 | The outermost layer of the roll |
| Luffing winch (m/min) | 52 | The outermost layer of the roll |
| Swing speed (r/min) | 0～2.2 | |
| Driving speed (km/h) | 0～1.3 | |
| Climbing ability % | 30% | |
| Ground specific pressure (MPa) | 0.1 | |
| Overall dimensions L×W×H (m) | 9.55×6.5×3.2 | mast boom not included |
| Engine | Rated power/speed (Kw/rpm) | 209/2000 | |
| Maximum output torque/speed (N.m/rpm) | 1356/1400 | |
| Emission standard | U．S．EPA Tier Ⅲ | |
| Track gauge × ground length × track shoe width (mm) | 5600×6850×900 | |
